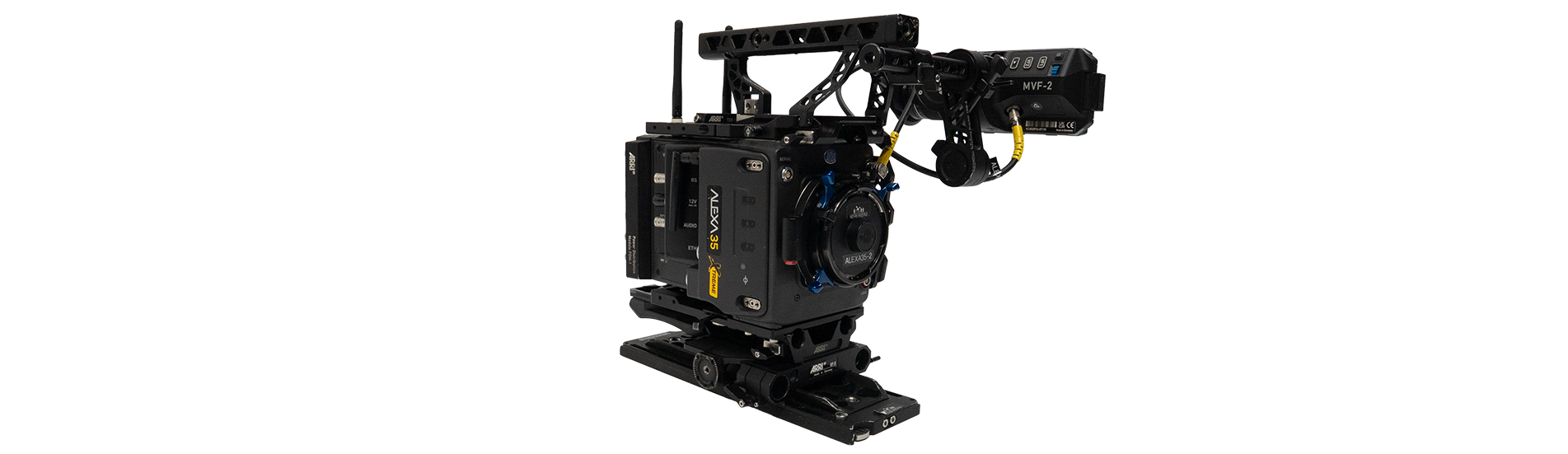

Arri Alexa 35 Xtreme
sensor type
Super 35 format ARRI ALEV 4 CMOS sensor with Bayer pattern color filter array
Sensor Maximum Number of Photosites and Size
4608 x 3164
27.99 x 19.22 mm / 1.102 x 0.757"
27.99 x 19.22 mm / 1.102 x 0.757"
Sensor Frame Rates
0.75 - 660 fps
Recording Frame Rates
ARRIRAW 4.6K 3:2 Open Gate: 35 / 80 fps
ARRIRAW 4.6K 16:9: 45 / 95 fps
ARRIRAW 4K 16:9: 55 / 125 fps
ARRIRAW 3.8K 16:9: 65 / 140 fps
ARRIRAW 3.8K 2.39:1: 85 / 190 fps
ARRIRAW 3.3K 6:5 - 3.3K: 55 / 120 fps
ARRIRAW 2K 16:9 S16: 230 / 330 fps
ARRIRAW HD 16:9 S16: 260 / 330 fps
ARRICORE 4.6K 3:2 Open Gate: 80 / 120 / 165* fps
ARRICORE 4.6K 16:9: 100 / 150 / 200* fps
ARRICORE 4K 16:9: 125 / 150 / 210* fps
ARRICORE 3.8K 16:9: 145 / 150 / 240* fps
ARRICORE 3.8K 2.39:1: 195 / 240 fps
ARRICORE 3.3K 6:5 - 3.3K: 120 / 120 / 210* fps
ARRICORE 2K 16:9 S16: 330 / 330 / 660* fps
ARRICORE HD 16:9 S16: 330 / 330 / 660* fps
Apple ProRes 4444 4.6K 3:2 Open Gate: 90 / 120 fps
Apple ProRes 4444 4.6K 16:9: 110 / 150 fps
Apple ProRes 4444 4K 16:9: 135 / 150 fps
Apple ProRes 4444 3.8K 16:9: 150 / 150 fps
Apple ProRes 4444 3.8K 2.39:1: 210 / 240 fps
Apple ProRes 4444W 3.3K 6:5 - 3.3K: 120 / 120 fps
Apple ProRes 4444 2K 16:9 S16: 330 / 330 fps
Apple ProRes 4444 HD 16:9 S16: 330 / 330 fps
Recording Formats
MXF/ARRIRAW*
MXF/ARRICORE
MXF/Apple ProRes 4444 XQ
MXF/Apple ProRes 4444
MXF/Apple ProRes 422 HQ
